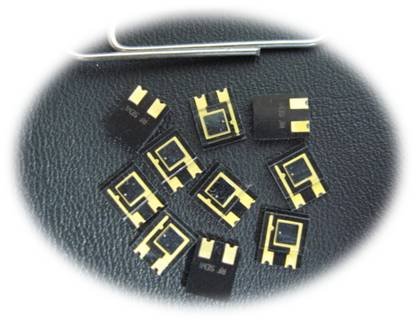

Click to enlarge image
|
Origin |
Korea |
Model Number |
DDN2090M |
Brand Name |
APMK |
Application |
Oximetry Sensor |
Features
- Matching to SPO2 Detector Responsivity
- Optical Active Area = 2.2mm x 2.2mm
- Chip on Board Package
Applications
- Transmissive(Refrective)
- Blood Analysis
- Medical Instrumentation
- Radiometric Instrument
- Oximeter Probes
Absolute MAX. Ratings(Ta=25°C unless otherwise noted)
Symbol
|
Parameter
|
Max. Rated Value
|
Units
|
PD
|
Power Dissipation
|
120
|
mW
|
IF
|
Continuous Forward Current
|
50
|
mA
|
IFR
|
Peak Forward Current
|
100
|
mA
|
VR
|
Reverse Voltage
|
5
|
V
|
T stg
|
Storage Temp.
|
-20~+85
|
°C
|
T opr
|
Operating Temp.
|
-20~+80
|
°C
|
T sd
|
Soldering Temperature *1
|
240
|
°C
|
*1. Test Condition : t<3s |
Characteristics(Ta=25°C unless otherwise noted)
Symbol
|
Characteristic
|
Test Condition
|
Min
|
Typ
|
Max
|
Unit
|
V BR
|
Reverse Breakdown Voltage
|
IR=100uA
|
35
|
|
|
V
|
I D
|
Reverse Dark Current
|
V R=10V
|
|
|
20
|
nA
|
I L
|
Light Current
|
1mW, 940nm
|
|
21
|
|
uA
|
S
|
Spectral Response Range
|
|
400
|
|
1050
|
nm
|
CJ
|
Junction Capacitance
|
VR=3V, f=1MHz
|
|
20
|
|
pF
|
λ PEAK
|
Peak Wavelength
|
|
|
940
|
|
nm
|
|
|
Packaging |
250, 500, 1000 pcs per pack |
Delivery lead time |
1week |
Minimum order |
100pcs |
|
|
|
|
|
|
